Pneumatic Quick Release Spring Towing Hook Ship Towing Equipment

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

SWL : 200KN to 600KN

Material : Mild Steel, C-Mn Steel

Usage : Mooring and Towing

Standard : CB*3064-79

Type : Spring Type

Test : Prototype Test, Break Load Test, Safe Working Load Test, Operation Test

Operation System : Pneumatic Control, Remote Control, Manual Release

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.

Contact Now

Pneumatic Quick Release Spring Towing Hook Ship Towing Equipment

Description

Marine towing hook is to pull the ship safely under severe conditions. It can release towing rope under conditions of slack or full safe working load to ensure the safety of the ship and personnel. It can be released locally or remotely from the wheel house by pulling the release wire or control button. Remote control systems release mechanism is either hydraulic or pneumatic.

We supply

  1. Quick Release Towing Hook
  2. Pneumatic/ Manual Release Disc Towing Hook
  3. Pneumatic Release Harbour Towing Hook
  4. Hydraulic Release Towing Hook
  5. Pneumatic / Manual Release Spring Towing Hook
  6. Single / Double / Triple / Quadruple Quick Release Mooring Hook
  7. Pelican Hook
  8. Buoy Type Quick Release Hook

Main Technical Specifications:

  1. SWL: 200KN to 600KN
  2. Material: Mild Steel, C-Mn Steel
  3. Usage: Mooring and Towing
  4. Standard: CB*3064-79
  5. Type: Spring Type
  6. Test: Prototype Test, Break Load Test, Safe Working Load Test, Operation Test
  7. Operation System: Pneumatic Control, Remote Control, Manual Release
  8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer,
  9. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
  10. Can be Customized

Main Technical Parameters:

SWL

(KN)

 Dimensions (mm)

Weight

(kg)

Link Dimensions

(mm)

Roller Radius of Action

(mm)

 Air Cylinder Pressure (MPa)
A B C D E G H I
200 1830 1630 340 R50 614 342 70 150 210 1400~1475 0.6~0.8
300 2015 1780 384 R70 805 595 85 170 240 1690~1805
400 1935 1655 404 R75 830 697 90 190 260 1490~1590
600 2270 1906 485 R90 940 1234 110 240 340 1740~1845

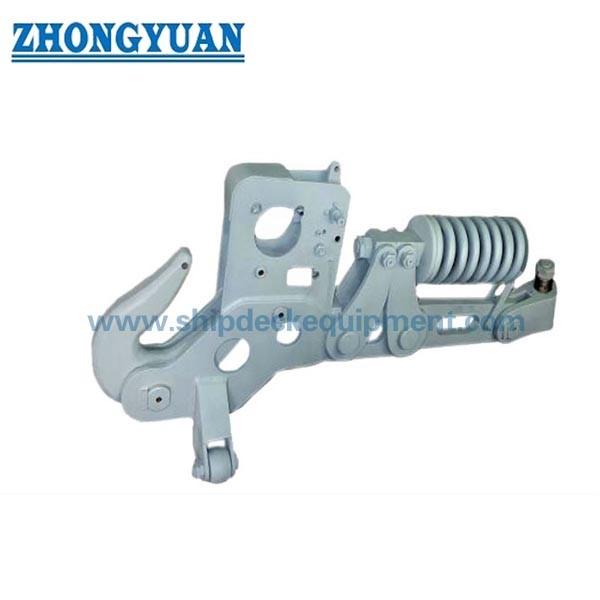

Pneumatic Quick Release Spring Towing Hook Ship Towing Equipment

Drawing of Pneumatic Quick Release Spring Towing Hook Ship Towing Equipment

Pneumatic Quick Release Spring Towing Hook Ship Towing Equipment
